Alborz Ghaleb Industrial Complex is a premier global manufacturer of concrete formwork systems and high-strength accessories. We produce heavy-duty Dome Waler Plates (also known as pressed Waler Plate Washers or Soldier Washers) utilizing high-grade ST37 steel sheet in exact thicknesses of 4mm and 5mm, with standard 18mm central holes. Engineered to withstand high hydrostatic pressure on large-scale walls, dams, and bridge abutments, our dome waler plates optimize load distribution along soldier profiles. We ship worldwide, supplying top contractors across the Gulf region, Iraq, Armenia, Russia, and Central Asia.

What is a Dome Waler Plate and Why is its Shape Convex?

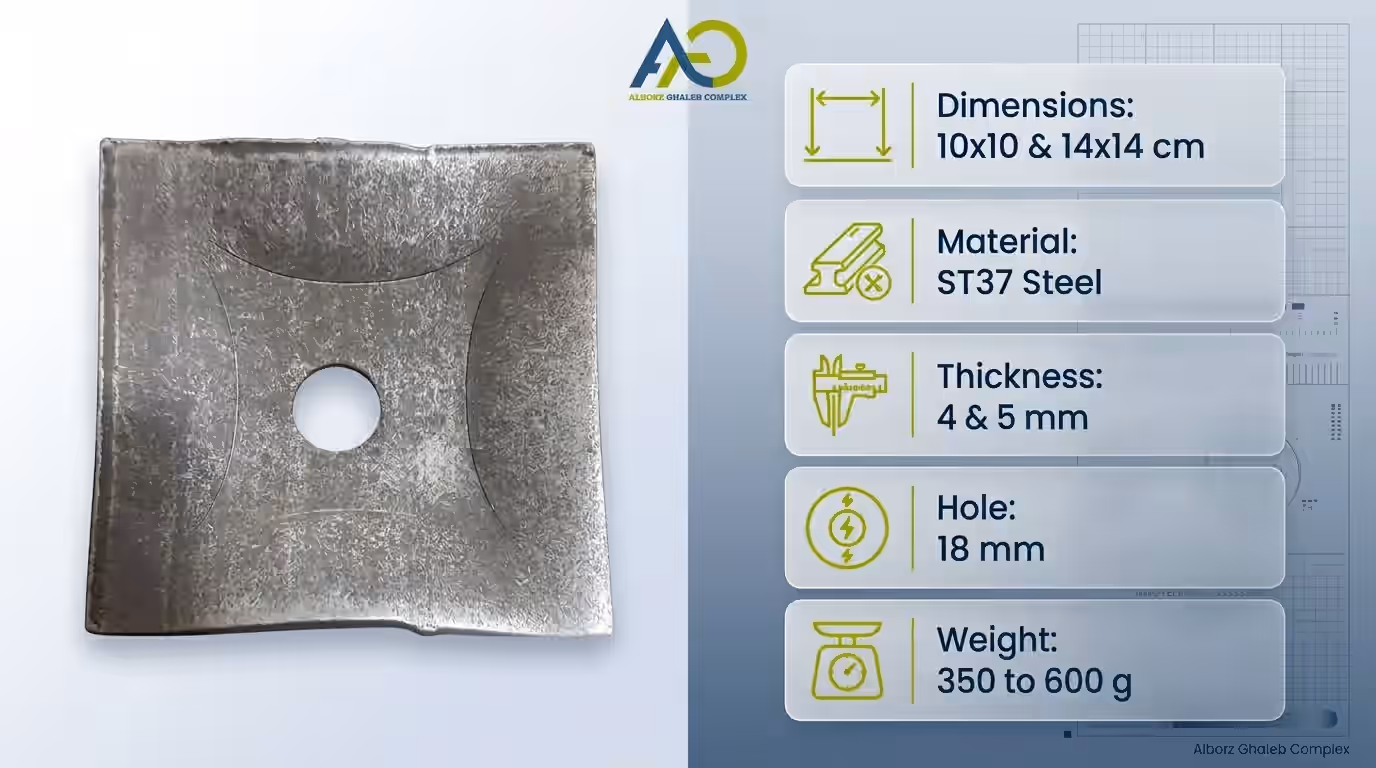

A dome waler plate (soldier washer plate) is a square steel plate (typically 10x10 cm or 14x14 cm) with a specialized central dome or conical shape pressed in its center, featuring an 18mm hole for formwork tie rods. Unlike flat steel plates, this convex shape is engineered specifically for formwork backing systems where double-channel steel soldiers are used. Flat plates bend easily under severe tension, which shuffles the entire formwork system, leading to dangerous grout leaks or wall deformation. The 3D dome geometry drastically increases the plate's moment of inertia, preventing any bending or crushing under extreme concrete pressure.

Additionally, the dome structure functions as a socket for the spherical base of the formwork wing nut. This "ball-and-socket" coupling allows the wing nut to seat securely within the waler plate's cavity. Even if the tie rod passes through at a slight angle, the tension is distributed perfectly and evenly onto the supporting profiles, such as soldier channels. This high load capacity is crucial for securing modular formwork systems in heavy-duty vertical concrete casts.

Key Advantages of Alborz Ghaleb Dome Waler Plates

• Exceptional Bending Resistance: The dome shape increases load resistance by up to 300% compared to flat washers of the same thickness.
• Ball-and-Socket Joint Action: Secures the spherical base of the wing nut and tolerates minor misalignment of the tie rod.
• Made from High-Grade ST37 Steel: Brand-new steel sheets provide high tensile strength and prevent sudden brittle cracking.
• Precise Sheet Thicknesses: Available in 4mm and 5mm thicknesses with zero negative tolerances for maximum structural integrity.
• Saves Soldier Profiles: Wide flat margins distribute local compression, preventing the deformation of expensive structural soldiers.
• Multiple Reusable Cycles: Outstanding physical durability allows the plates to be reused across dozens of high-pressure casting cycles.
• Efficient Assembly: Rapid installation speeds up vertical waler alignment and formwork tie-back on construction sites.

Product Types and Categorization of Dome Waler Plates

Dome waler plates are classified according to physical size and structural thickness:

• 10x10 cm Light (4mm): Mainly used for columns and standard shear walls up to 3.5 meters in height. Weight: approx. 350 grams.
• 10x10 cm Heavy (5mm): Provides an extra safety margin for walls up to 5 meters. Weight: approx. 450 grams.

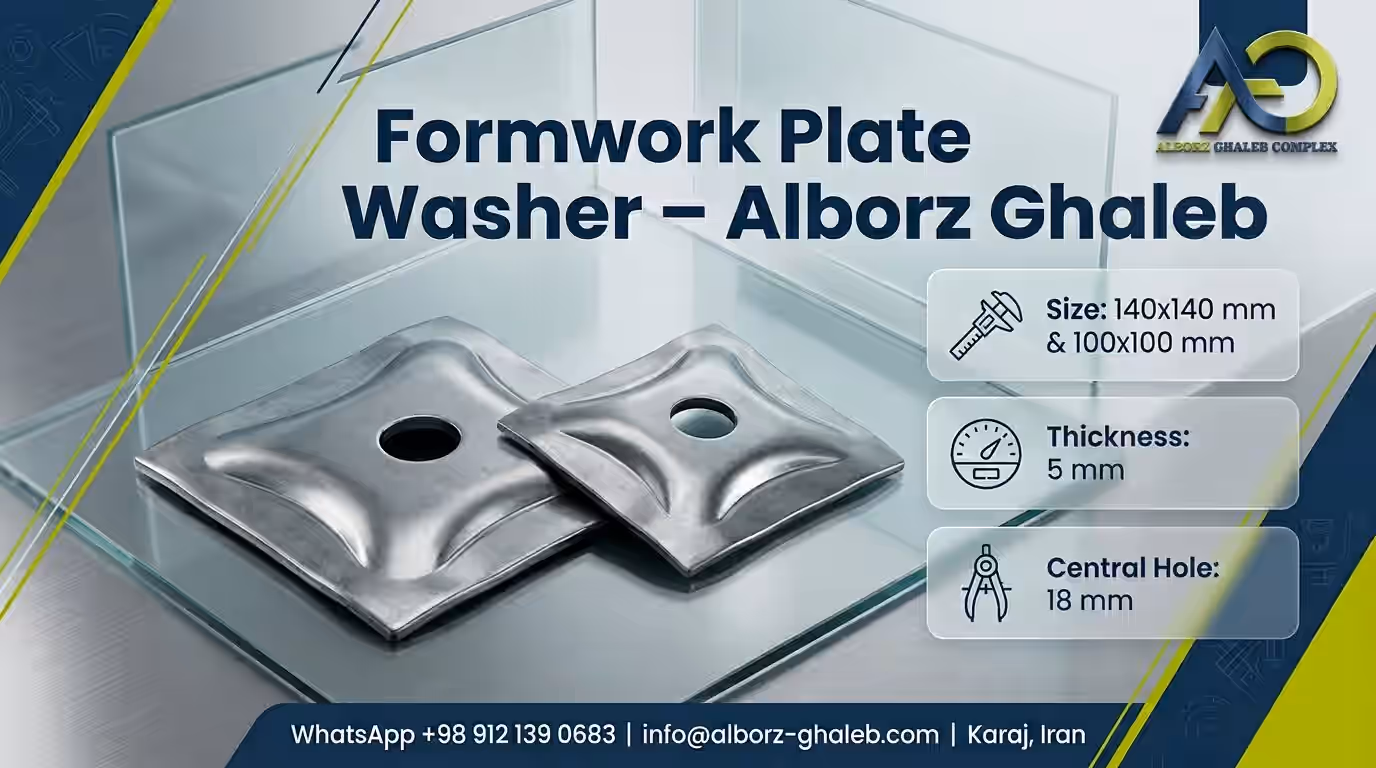

• 14x14 cm Heavy Duty (5mm): Known as the ultimate soldier plate washer. Offers the widest load distribution for heavy concrete structures. Weight: approx. 600 grams.

Dome Waler Plate Pricing and Key Cost Factors

Dome waler plate prices directly correlate with the daily rates of hot-rolled carbon steel plates in the metal exchange. Additionally, the following factors influence the wholesale cost:

• Steel Sheet Thickness: 5mm plates contain more raw material and thus cost slightly more than 4mm models.
• External Dimensions: 14x14 cm plates utilize more raw steel than 10x10 cm profiles.
• Surface Treatment: Black self-color is standard, whereas Hot-Dip Galvanization adds a coating premium.
• Order Volume: Bulk purchases (container/truck loads) qualify for direct factory discounts from Alborz Ghaleb.

Technical Specifications and Comparison Table

Quality Control Technical Checklist for Buyers

Verify these critical points prior to purchasing dome waler plates from any manufacturer:

• ✅ Exact Plate Thickness: Measure with a micrometer caliper to ensure it meets 4mm or 5mm specs without negative tolerance.
• ✅ Steel Integrity: Ensure brand-new steel is used. Reused scrap iron is highly brittle and can snap under tension.
• ✅ Clean Central Hole: The 18mm hole must be perfectly punched and free of burrs or slag to prevent tie rod jamming.
• ✅ Symmetrical Dome Geometry: The dome must be perfectly centered to distribute load symmetrically.
• ✅ Deburred Edges: Sharp corners should be rounded or clean-punched to prevent worker hand injuries.
• ✅ Sack Weight Verification: A sack of 100 heavy-duty 10x10 plates should weigh exactly around 45 kg.
• ✅ ST37 Carbon Steel Grade: Standard structural steel grade provides the necessary ductility for deep pressing.

Project-Based Selection Guide

Formwork Dome Waler Plate Installation Guide – Step-by-Step

Properly clamping concrete formwork panels utilizing soldier channels and dome waler plates is vital for securing high-pressure vertical concrete pours. Structural failures occur when installers put plates backwards or fail to torque wing nuts correctly. Follow this professional step-by-step procedure to ensure safe execution on site:

1. Install Panels & Backing Profiles: Assemble the steel modular formwork panels using wedge pins. Lay scaffolding tubes horizontally, and position vertical soldier channels at designated intervals to form the main backing structure.
2. Inspect Plates & Accessories: Verify that dome waler plates are free from cracks and rust. Check that the high-strength tie rods are straight and that their threads are clean.
3. Insert Tie Rods: Thread the tie rod through the formwork panel holes and the protective PVC sleeve already cast in the wall space.
4. Position the Dome Waler Plate: Slide the dome waler plate over the tie rod. Ensure the flat square margin lies directly against the soldier channel wings, and the dome-like convex center points outward.
5. Attach the Wing Nut: Thread the heavy-duty cast iron wing nut onto the tie rod. Let the spherical under-surface of the nut rest neatly inside the plate's dome cavity.
6. Tighten and Torque: Use a formwork hammer or wing nut spanner to tighten the wing nut firmly, distributing the tie rod tension evenly across the soldier flanges. For vertical ceiling adjustments, synchronize this step with adjustable U-head jacks.
7. Perform Final Inspection: Tap all wing nuts lightly before starting the concrete pour to guarantee that no connection is loose.

Required Tools:

• Heavy formwork hammer or wing nut spanner
• Caliper for checking sheet thickness
• Spirit level and measuring tape for soldier verticality

Safety Rules on Site:

• Installers working above 2 meters must wear full-body safety harnesses and approved hard hats.
• Never throw plates, pins, or wing nuts down from high scaffolding levels.
• Discard deformed or deeply rusted tie rods and plates immediately; do not reuse them.

Common Worker Mistakes:

A frequent error is placing the dome waler plate backwards, with the dome facing the soldier. This severely reduces the contact surface and bends the soldier profiles. Another mistake is using dome waler plates on scaffolding pipes instead of flange washers (two-pipe washers); dome waler plates will slip on round pipes, resulting in dangerous joint failures.

Key Applications in Civil Construction

Dome waler plates are indispensable in modern concrete engineering projects:

• High Shear Walls: Stabilizes heavy panels during high-rise building core casts.
• Massive Concrete Columns: Prevents blowing out of massive square and rectangular columns.
• Water Reservoirs & Dams: Endures extreme hydraulic pressure of thick concrete castings.
• Bridge Piers & Abutments: Offers secure clamping on complex civil bridge structures.

For advanced shoring combinations, please review our comprehensive guide on heavy-duty modular scaffolding systems.

Long-Term Storage and Maintenance Guidelines

Keep your construction assets in perfect working condition with these care tips:

• Store in Dry, Covered Areas: Prevent oxidation of raw ST37 steel by keeping the plates away from rain and damp ground.
• Apply Formwork Oil: Lightly coat plates with demoulding oil after striking to prevent rust during off-season storage.
• Bag and Organize: Pack plates in heavy-duty sacks of 50 or 100 pieces for simple inventory counting.
• Avoid High-Impact Drops: Handle plates with care during transport to prevent structural denting.

Equip Your Construction Project with Alborz Ghaleb

To establish a flawless shoring structure on your site, integrate our high-strength dome waler plates with premium threaded tie rods and heavy cast wing nuts. Additionally, you can secure formwork panels using our durable wedge pins and explore flange washers in our catalog of concrete formwork accessories. For ceiling support, combine our reliable shoring jacks with modular scaffolding towers to achieve maximum stability on your project.

Why Buy Dome Waler Plates from Alborz Ghaleb Complex?

For over 20 years, Alborz Ghaleb has stood as an industry leader, delivering premium-quality, reliable structural steel hardware:

• Direct Factory Pricing: Eliminate middlemen margins by buying directly from our manufacturing plant in Karaj.
• Advanced Press Machining: Accurate hydra-press forming guarantees strict thickness dimensions with zero negative tolerance.
• Full Cargo Guarantee: We provide full material replacement guarantees if physical dimensions or weight deviate from your order.
• Verified Export Standards: Certified packaging and customs assistance for seamless delivery across the Middle East and CIS region.
• Complimentary Technical Consultation: Our sales engineers assist in estimating your exact hardware quantities based on formwork drafts.
