Introduction: Why Adjustable Head Jacks Are Crucial for Construction

In modern construction, achieving structural integrity and precision is paramount. Among the essential tools facilitating this is the Adjustable Head Jack, also known as U Head Jack, U Jack Scaffolding, Base Jack Scaffolding, or Adjustable Base Jack. These tools serve as robust supports for concrete formwork, ensuring that concrete sets properly to form durable walls, slabs, or bridges.

Recognized by contractors and civil engineers under various names, Adjustable Head Jacks are integral to formwork and scaffolding systems. They are widely used to level modular scaffolding, accelerate formwork processes, and provide precise support for various scaffolding types, including triangular, hammer, or tubular systems. This comprehensive guide delves into the features, applications, benefits, pricing, and selection criteria for Adjustable Head Jacks, offering insights to enhance your construction projects.

Whether you’re a contractor, engineer, or project manager, understanding the role of Adjustable Head Jacks can streamline your operations and elevate the quality of your builds. Continue reading to explore how these tools can transform your construction projects.

What Is an Adjustable Head Jack?

Definition and Components

An Adjustable Head Jack, also referred to as a U Head Jack or U Jack Scaffolding, is a metal tool designed to support and level concrete formwork or scaffolding systems. It typically comprises three key components:

Threaded Bolt: A 32 mm diameter rod that enables precise height adjustments.
U-Shaped Plate: A 5 mm thick metal plate that secures formwork or scaffolding components.
Wing Nut: Crafted from durable ductile cast iron, used to lock the bolt and adjust height.

The term “adjustable” highlights its ability to modify height effortlessly, making it a versatile tool for diverse construction requirements.

Why Adjustable Head Jacks Matter

Adjustable Head Jacks are critical for maintaining the stability and alignment of formwork during concrete pouring. Without these tools, issues like formwork misalignment or uneven surfaces can compromise structural quality. Their robust design and flexibility make them suitable for projects of all scales, from residential buildings to large infrastructure developments.

Discover more about concrete formwork systems and their role in achieving superior construction outcomes

Applications of Adjustable Head Jacks in Construction

Supporting Concrete Formwork

Adjustable Head Jacks are primarily used to support concrete formwork during the casting of slabs, walls, or bridges. Positioned at the top or bottom of modular scaffolding, they ensure stability and precise leveling. Key applications include:

Concrete Slabs: Providing a level surface for smooth, defect-free slabs.
Single-Sided Concrete Walls: Withstanding high concrete pressure during pouring.
Bridges and Tunnels: Supporting complex formwork in large-scale projects.

Learn about advanced solutions like waffle slab formwork to optimize your slab construction.

Leveling Modular Scaffolding

Adjustable Head Jacks, also known as Base Jack Scaffolding, are essential for leveling modular scaffolding systems, such as triangular or hammer scaffolding. They ensure the top surface of the scaffolding is perfectly aligned, which is crucial for maintaining precision in large construction projects.

Stabilizing Temporary Structures

These jacks are also used to support temporary structures, such as formwork for columns or beams. Their adjustable design allows them to meet varying height requirements, making them highly versatile.

Explore our range of system scaffolding solutions for comprehensive construction support.

Benefits of Using Adjustable Head Jacks

Ease of Installation and Removal

Adjustable Head Jacks are designed for quick installation and removal, reducing labor time and effort on construction sites. Their user-friendly design requires minimal skilled labor, making them cost-effective.

High Load-Bearing Capacity

Constructed from premium materials like steel and ductile cast iron, Adjustable Head Jacks can handle heavy loads over extended periods, ensuring safety and durability.

Rapid Project Execution

The straightforward design of U Jack Scaffolding allows for swift setup and adjustments, enhancing project efficiency.

Flexible Height Adjustment

These jacks enable precise height modifications, ensuring accurate leveling and alignment of formwork or scaffolding systems.

Portability and Storage

Compact and lightweight, Adjustable Base Jacks are easy to transport and store, making them practical for multiple project sites.

How to Select and Use Adjustable Head Jacks in Construction

Key Selection Criteria

Choosing the right Adjustable Head Jack involves considering several factors:

Ceiling Height: Select a jack length that matches the required height.
Overlap: Typically 20-30 cm to ensure stability.
Material Quality: Opt for jacks made from high-grade steel or cast iron.
Load Capacity: Verify the jack can support the weight of the concrete and structure.

Practical Example

For a concrete slab ceiling at 4.5 meters using triangular scaffolding:

Choose 1-meter scaffolding bases (4 bases provide 4 meters).
Use a 60 cm Adjustable Head Jack to cover the remaining 50 cm, including a 20-30 cm overlap.
Ensure the soldier or profile pipe aligns with the required height.

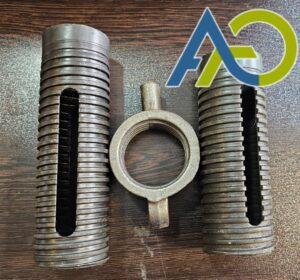

For more insights on heavy-duty support systems, visit our page on prop jacks for construction.

Tips for Purchasing and Using Adjustable Head Jacks

Verify Material Quality

Choose Adjustable Head Jacks made from high-quality steel or ductile cast iron to ensure durability and performance.

Select the Appropriate Size

Match the jack length to the ceiling or scaffolding height, accounting for a 20-30 cm overlap.

Inspect Before Use

Examine the jack for defects or damage to ensure safe operation.

Proper Storage

Store Adjustable Base Jacks in a dry environment to prevent rust and extend their lifespan.

Regular Maintenance

Conduct periodic inspections, especially for long-term projects, to maintain optimal condition.

Why Choose Alborz Ghaleb for Adjustable Head Jacks?

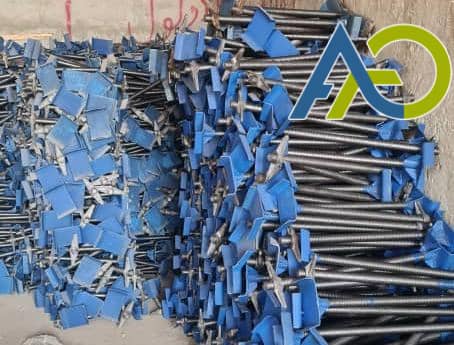

Alborz Ghaleb Industries is a leading manufacturer of Adjustable Head Jacks and U Jack Scaffolding, utilizing state-of-the-art machinery and skilled professionals to deliver top-quality products. Benefits include:

Wide Range of Sizes: Available in 40, 50, 60, 70, and 80 cm lengths to suit various project needs.
Superior Quality: Crafted from premium steel and ductile cast iron for durability.
Expert Support: Comprehensive technical guidance and customer service.

Take advantage of our limited-time offers on prop jacks for construction. Contact us today!

Frequently Asked Questions About Adjustable Head Jacks

What Is an Adjustable Head Jack and How Does It Function?

An Adjustable Head Jack is a tool used to stabilize and level concrete formwork or scaffolding by adjusting its height via a threaded bolt and wing nut.

How to Choose the Best Adjustable Head Jack?

Consider ceiling height, overlap (20-30 cm), material quality, and load capacity.

What Are the Applications of Adjustable Head Jacks?

They support formwork, level scaffolding, and stabilize temporary structures in construction.

Do Adjustable Head Jacks Require Special Maintenance?

They need minimal maintenance but should be inspected regularly and stored properly.

What Is the Lifespan of an Adjustable Head Jack?

With proper care, they can last for years, depending on material quality and usage.

Conclusion: Enhance Your Construction Projects with Adjustable Head Jacks

Adjustable Head Jacks, including U Jack Scaffolding and Base Jack Scaffolding, are indispensable for achieving high-quality concrete structures. By selecting the right tools from Alborz Ghaleb and following best practices, you can boost efficiency and ensure superior project outcomes.
