What is a Waffle Slab? (Beyond a Simple Definition)
A waffle slab is a type of reinforced concrete slab whose underside features a grid-like pattern, resembling a waffle, created by special square or rectangular molds. But the key phrase here is “removable formwork.”
Unlike systems like Cobiax or U-Boot, where plastic voids are permanently embedded within the concrete (a cost that is literally buried forever), the molds in a waffle slab system are stripped after the concrete cures. This allows them to be reused for subsequent floors or entirely different projects.
From a technical standpoint, this system is a voided slab that dramatically reduces the structure’s dead load by eliminating non-structural concrete from the tension zone (below the neutral axis), all without compromising its strength.
Why Waffle Slabs Are Replacing Traditional Joist and Block Systems
The conventional joist and block system, filled with polystyrene (Styrofoam), not only poses a low seismic performance and a significant fire hazard but is also limited to spans of around 7 meters. In contrast, a waffle slab creates monolithic, in-situ concrete joists, enabling the construction of clear spans up to 16 meters and beyond.
Types of Waffle Slabs: One-Way vs. Two-Way (A Critical Difference)
One of the biggest points of confusion for clients is the difference between these two systems. Making the wrong choice can either waste your budget or compromise the structural safety of your building.
1. The One-Way Waffle Slab
This system functions exactly like a traditional joist and block slab, with loads being transferred in a single direction.
- Application: Ideal for shorter spans (up to 8 meters).
- Molds: Typically rectangular and assembled from modular pieces.
- Advantage: The best alternative to joist and block systems, eliminating the costs of precast joists and polystyrene while creating a fully monolithic and rigid concrete slab.
2. The Two-Way Waffle Slab
This is where the engineering magic happens. In this system, the load is distributed in two directions (longitudinally and transversely).
- Application: Perfect for long spans (8 to 16 meters) and projects requiring the elimination of intermediate columns.
- Molds: Square-shaped (e.g., 60×60, 80×80, or 90×90 cm).
- Advantage: Creates vast, column-free spaces ideal for parking garages, event halls, and lobbies. It also offers a stunning exposed aesthetic and superior seismic performance.
Pro Tip from Alborz Ghaleb: To select the right mold for your specific span and design, you can explore the technical specifications and various dimensions of our waffle slab molds.

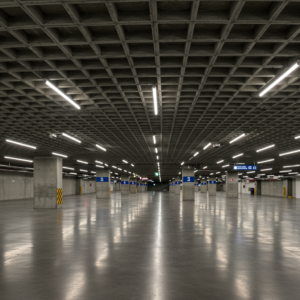

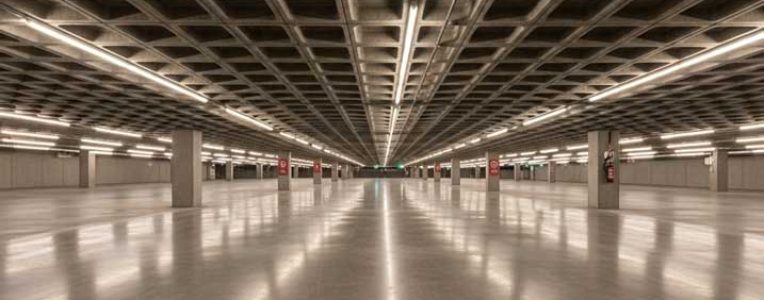

(Image caption: A modern and attractive parking garage featuring an exposed waffle slab ceiling)
Removable vs. Permanent Waffle Molds (The Contractor’s Most Important Question)
| Feature | Removable Waffle Slab (Polypropylene) | Permanent Waffle Slab (Foam/Polystyrene) |
|---|---|---|
| Final Dead Load | 175–205 kg/m² | 230–270 kg/m² |
| Possible Clear Span | Up to 17.5 meters | Maximum 11–12 meters |
| Execution Speed | 180–250 m²/day (per crew) | 90–120 m²/day |
| Formwork Cost | Investment (Reusable) | Consumable Cost (Permanent) |
| Acoustic & Thermal Insulation | Excellent (due to trapped air pockets) | Poor (foam is not an effective sound absorber) |
| Mold Recyclability | 100% recyclable and sellable as scrap | Non-recyclable |
| The Choice for 98% of Luxury Projects in 2024 | ✓ | ✗ |
Conclusion: If your project requires spans over 9 meters or aims for a high-end finish, the removable waffle slab is the only logical choice.
Complete Comparison: Waffle Slab vs. 6 Other Common Systems
(Based on Iranian Seismic Code 2800 and ACI 318-19)
| Ceiling System | Dead Load (kg/m²) | Max Clear Span | Speed (m²/day) | Total Cost Nov 2024 (Toman/m²) | Rebar Usage (kg/m²) | Seismic Performance |
|---|---|---|---|---|---|---|
| Standard Joist-Block | 260–290 | 8–9 m | 120–160 | 980,000–1,150,000 | 18–22 | Moderate |
| Cobiax | 215–245 | 12–14 m | 80–110 | 1,550,000–1,850,000 | 16–19 | Good |
| U-Boot | 195–225 | 13–15 m | 100–140 | 1,480,000–1,720,000 | 15–18 | Excellent |
| Post-Tensioned | 230–270 | 14–18 m | 90–130 | 1,650,000–2,100,000 | 20–25 | Excellent |
| Steel Deck | 280–330 | 10–12 m | 250–350 | 1,380,000–1,650,000 | 12–15 | Weak |
| Removable Waffle | 175–205 | 10–17.5 m | 180–260 | 1,290,000–1,680,000 | 14–17 | Outstanding |
Conclusion: Waffle slabs represent the most economical option for spans exceeding 10 meters in 90% of projects.
Waffle Slab Construction Process (A Step-by-Step Technical Guide)
Executing a waffle slab requires precision and the right equipment. The final quality of the slab—especially if it’s left exposed—directly depends on the quality of the formwork and shoring.
Step 1: Shoring and Falsework
This is the most critical phase for on-site safety. The shoring strategy varies based on the ceiling height and concrete weight.
- For standard heights (up to 3.5m): The structure is typically supported by a network of high-quality shoring jacks. It is essential to use properly rated props to bear the applied load safely.
- For high ceilings and heavy loads: In large-scale projects or high-ceiling areas (like lobbies or atriums), individual jacks are unsafe. In these situations, a complete shoring tower, such as a modular scaffolding system, is required to provide a rigid and safe support structure that also accelerates the construction process.
Step 2: Grillage System (Framework)
After the shoring is erected, metal profiles (square or round tubes) are placed on top to form a grillage. For two-way waffle slabs, this framework is typically a grid, allowing the waffle molds to be placed securely.
Step 3: Placing the Waffle Molds
The molds are arranged on the grillage according to the structural drawings. Modern locking systems, which we supply at Alborz Ghaleb, use pins and wedges to connect the molds. This prevents shifting during the concrete pour and ensures perfectly straight and aligned concrete ribs.
Step 4: Rebar Installation
Unlike systems that use precast joists, all reinforcement in a waffle slab (stirrups, main bars, and temperature/shrinkage bars) is tied on-site. This ensures a 100% monolithic connection and complete structural integrity.
Step 5: Concrete Pouring and Vibration
The concrete is poured in a single, monolithic operation. The critical point here is proper vibration to ensure the concrete fills all voids between the molds and prevents honeycombing on the finished surface.
Step 6: Demolding (Stripping the Formwork)
Once the concrete has reached its required strength, the molds are stripped. Thanks to their composite polypropylene material, the concrete does not adhere to the molds, resulting in an exceptionally smooth and clean finish.
Economic Analysis: Are Waffle Slabs Truly Cost-Effective?
At first glance, many clients assume waffle slabs are expensive. But let’s analyze the total structural cost, not just the price of the molds.
- Reduced Rebar and Concrete: By eliminating inefficient concrete and reducing the dead load, seismic forces are lowered, leading to a lighter design for the entire frame and foundation.
- Elimination of Precast Joists: You no longer pay for the fabrication and transportation of precast joists.
- Reusable Formwork (ROI): You purchase the waffle molds once and can reuse them for up to 50 pours. After the project is complete, you can sell them as second-hand equipment, recouping a significant portion of your investment.
- Faster Construction: Eliminating joist welding and polystyrene placement, combined with the ability to pour concrete rapidly with a pump, significantly speeds up the project timeline.
Pros and Cons of Waffle Slabs (An Honest Look)
To make an informed decision, you need to see both sides of the coin.
Advantages:
- Architectural Flexibility: Eliminating columns gives architects complete freedom in designing parking layouts and common areas.
- Fire Safety: Unlike polystyrene, which produces toxic smoke and accelerates fire spread, a concrete waffle slab is inherently fire-resistant.
- Sound and Thermal Insulation: The trapped air pockets created by the voids act as a natural insulator, outperforming solid slabs.
- Exposed Aesthetic: By incorporating lighting within the waffle coffers, you can create a modern, striking look and eliminate the cost of a suspended ceiling.
Disadvantages:
- Requires a Specialized Team: Waffle slab execution, particularly the shoring and mold layout, requires an experienced contractor. It cannot be entrusted to crews only familiar with traditional joist systems.
- Initial Tooling Cost: The initial investment in molds and jacks may seem high, though this is offset by rental options or resale value.
Waffle Slab vs. U-Boot and Cobiax Comparison
Feature Waffle Slab U-Boot / Cobiax Formwork Status Removable (extracted) Permanent (embedded in concrete) Formwork Cost Investment (resalable) Consumable expense (lost) Ceiling Weight Lighter Heavier (due to underlying concrete) Concrete Quality Visible and inspectable Hidden (internal honeycombing risk) Repairs Easy (utilities accessible) Difficult The visibility advantage deserves emphasis: with waffle systems, you can inspect concrete quality after formwork removal. With permanent void formers, potential defects remain hidden forever — a quality control limitation that concerns many structural engineers.
Frequently Asked Questions (FAQ)
Below we address some of the most common questions based on our extensive project experience at Alborz Ghaleb:
Does a waffle slab vibrate?
No. When designed according to code requirements with proper slab thickness and formwork dimensions, waffle slabs provide very high rigidity. Unlike steel deck ceilings, you won’t experience any perceptible vibration — an important consideration for office buildings and hospitals where vibration affects occupant comfort and sensitive equipment.
What is the maximum waffle slab span?
With proper structural design and appropriate formwork selection, spans up to 17.5 meters are achievable. The practical limit depends on loading conditions, slab thickness constraints, and architectural requirements. Our technical team regularly assists engineers in optimizing designs for maximum span efficiency.
Is waffle slab approved by engineering organizations?
Absolutely. Waffle slabs are fully approved under Iranian Building Code Topic 9 and seismic code provisions. This system has been utilized in hundreds of luxury projects nationwide, including several landmark buildings that have passed rigorous third-party structural reviews.
What should we use for waffle slab shoring at 4.5-meter heights?
At this height, standard prop jacks alone are insufficient for safe, stable support. Modular scaffolding systems — such as cup-lock or ring-lock configurations — must be employed to ensure both safety and the precision required for quality waffle slab execution. The investment in proper scaffolding pays dividends in reduced risk and improved final quality.
What is the total cost difference between waffle and joist systems?
For spans under 8 meters, joist-block may be marginally cheaper on a per-square-meter basis. However, for spans exceeding 10 meters, waffle systems typically prove 15–25% more economical when considering total structural costs including frame, foundation, and time savings. The crossover point varies by project, which is why we recommend detailed cost analysis for each specific application.
Conclusion: Why Choose Alborz Ghaleb?
Choosing a slab system is one of the most critical decisions in a project’s lifecycle. The waffle slab, with its blend of aesthetics, strength, and economic efficiency, is a winning choice for modern buildings. However, the quality of execution is directly tied to the quality of the equipment.
At Alborz Ghaleb, we understand that a successful project depends on more than just one component. We support you with a complete ecosystem of solutions, from our guaranteed polymer molds to the full range of concrete formwork and support systems needed to get the job done right. We are not just suppliers; we are your technical partners through every stage of the process.
For a free consultation, an up-to-date price quote, or a cost estimate for your project, contact our experts today.
Experience the future of construction technology with Alborz Ghaleb.
