In modern construction, advanced technologies are essential for executing large projects with wide spans and complex loading patterns. Two-Way Waffle Slab Moulds are designed for constructing waffle slabs in such projects. Their ability to handle loads in two directions, reduce structural weight, and save materials makes them highly popular in industrial, commercial, and civil projects.
This article provides a detailed exploration of Two-Way Waffle Slab Moulds, including their features, applications, advantages, disadvantages, execution tips, and guidance on purchasing or renting. If you’re a contractor, civil engineer, or project manager, this guide offers comprehensive insights.
What Are Two-Way Waffle Slab Moulds?
Two-Way Waffle Slab Moulds are non-permanent moulds designed for waffle slab construction with loads distributed in two directions (longitudinal and transverse). Made from compressed plastic (polypropylene) or metal, they create a grid of voids that significantly reduce slab weight.
These moulds are removed after concrete curing and can be reused, making them cost-effective and eco-friendly. They are ideal for projects with spans exceeding 8 meters and complex loading, enabling open spaces without columns.
Difference Between Two-Way and One-Way Waffle Slab Moulds
- Two-Way: Designed for dual-direction loading, suitable for large spans and complex projects.
- One-Way: For single-direction loading and smaller spans (up to 8 meters).
Applications of Two-Way Waffle Slab Moulds
Two-Way Waffle Slab Moulds are used in large construction projects due to their flexibility and load-bearing capacity. Key applications include:
- Large Commercial Complexes: Such as shopping malls requiring wide, open spaces.
- Industrial Projects: Factories and warehouses needing strong, column-free slabs.
- Multi-Story Parking: Lightweight and suitable for large spans in parking structures.
- Convention and Sports Halls: For large spaces with minimal columns and aesthetic appeal.
- Special Civil Projects: Such as bridges and public structures with complex designs.
For robust scaffolding to support these projects, check out system scaffolding options.
Advantages of Using Two-Way Waffle Slab Moulds
Two-Way Waffle Slab Moulds offer numerous benefits for large projects:
- Dual-Direction Load Capacity: Ideal for complex loading and spans up to 15 meters or more.
- Reduced Structural Weight: Voids reduce slab weight by up to 30 percent, enhancing earthquake resistance.
- Material Savings: Lower concrete and rebar usage cuts costs significantly.
- Design Flexibility: Enables open spaces without columns, offering architectural freedom.
- Reusability: Moulds can be reused up to 50 times, reducing long-term costs.
- Aesthetic Appeal: The grid pattern is modern and attractive for exposed ceilings.
Disadvantages of Two-Way Waffle Slab Moulds
Despite their benefits, Two-Way Waffle Slab Moulds have limitations:
- Higher Initial Cost: Quality two-way moulds are more expensive than one-way moulds.
- Need for Skilled Labor: Execution requires trained teams and advanced equipment.
- Execution Complexity: Dual-direction mould placement and reinforcement demand precision and time.
Comparing Two-Way Waffle Slab Moulds with Other Slab Systems
Choosing the right slab system involves comparing Two-Way Waffle Slab Moulds with alternatives:
- Two-Way Waffle Slab vs. Bubble Deck:
- Weight: Two-way waffle slabs are lighter and better for large spans.
- Cost: More economical in the long term due to reusability.
- Execution: Bubble deck requires more precision.
- Two-Way Waffle Slab vs. Beam and Block:
- Weight: Waffle slabs are lighter.
- Cost: Beam and block is cheaper initially, but waffle slabs are better for large projects.
- Aesthetics: Waffle slabs offer a modern look.
- Two-Way Waffle Slab vs. Cobiax:
- Weight: Both are lightweight, but two-way waffle is better for complex loading.
- Cost: Waffle slabs are more cost-effective due to reusability.
Key Considerations for Purchasing or Renting Two-Way Waffle Slab Moulds
When buying or renting Two-Way Waffle Slab Moulds, consider:
- Mould Material: Plastic is lighter and cheaper; metal is more durable.
- Mould Dimensions: Common sizes include 60 by 60, 80 by 80, or 90 by 90 centimeters, chosen based on project needs.
- Build Quality: Moulds must withstand concrete pressure and environmental conditions.
- Price: In 2025, plastic two-way moulds cost between $12 and $35 per mould.
- Rent or Buy: Renting suits short-term projects; buying is better for large projects.
- Reputable Supplier: Source from trusted suppliers for quality and support.
For reliable support during mould installation, visit construction prop jacks.
How to Execute a Waffle Slab with Two-Way Moulds
Executing a two-way waffle slab involves:
- Structural Design: Create drawings considering dual-direction loading and large spans.
- Formwork Setup: Install scaffolding and supports for concrete weight.

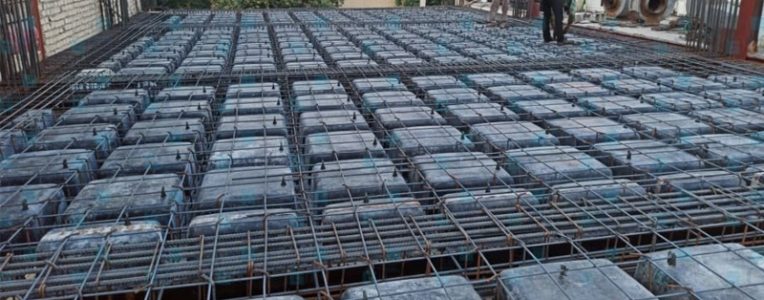

- Mould Placement: Position two-way moulds in a regular grid and level them.
- Reinforcement: Place rebar in both directions (longitudinal and transverse) per the design.
- Concrete Pouring: Pour concrete evenly over the moulds.
- Mould Removal: Remove moulds after curing (7 to 14 days) for reuse.
Sample Projects Using Two-Way Waffle Slab Moulds
Two-Way Waffle Slab Moulds have been used in major Iranian projects, including:
- Large Commercial Centers: For open spaces and wide spans.
- Sports and Convention Halls: For aesthetic design and high strength.
- Multi-Story Parking in Major Cities: For reduced weight and cost efficiency.
Frequently Asked Questions About Two-Way Waffle Slab Moulds
- What projects are suitable for Two-Way Waffle Slab Moulds?
Projects with large spans and dual-direction loading, like commercial centers and parking structures. - Are two-way waffle slabs earthquake-resistant?
Yes, their reduced weight and uniform load distribution enhance earthquake resistance. - What is the rental cost for two-way moulds?
Typically $1.2 to $3 per mould per month in Iran. - What’s the main difference between two-way and one-way moulds?
Two-way moulds are for dual-direction loading and larger spans.
Conclusion: Are Two-Way Waffle Slab Moulds Suitable for Your Project?
Two-Way Waffle Slab Moulds offer an advanced and efficient solution for constructing concrete slabs in large projects with wide spans and complex loading. With benefits like reduced weight, cost savings, and design flexibility, they are ideal for contractors and engineers. However, their execution requires skilled labor and precise planning.
