In the construction industry, modern slab systems are essential for reducing costs, improving safety, and enhancing structural performance. One-Way Waffle Slab Moulds are a key component in constructing waffle slabs for various building projects. Their unique design, weight reduction capabilities, and material efficiency make them ideal for small to medium-scale projects.
This article explores One-Way Waffle Slab Moulds in detail, covering their features, applications, advantages, disadvantages, execution tips, and guidance on purchasing or renting. If you’re a civil engineer, contractor, or project manager seeking precise information about this technology, this guide is for you.
What Are One-Way Waffle Slab Moulds?
One-Way Waffle Slab Moulds are non-permanent moulds designed for waffle slab construction with loads primarily distributed in one direction. Typically made from compressed plastic (polypropylene) or metal, these moulds create a grid of voids in the slab, reducing its weight.
Unlike permanent moulds that remain in the structure, One-Way Waffle Slab Moulds are removed after concrete curing and can be reused. This reusability makes them cost-effective and environmentally friendly. They are suitable for shorter spans (up to 8 meters) and projects with unidirectional loading.
Difference Between One-Way and Two-Way Waffle Slab Moulds
- One-Way: Designed for single-direction loading, ideal for smaller spans.
- Two-Way: Suitable for dual-direction loading, used in larger spans (over 8 meters).
Applications of One-Way Waffle Slab Moulds
Due to their simplicity and efficiency, One-Way Waffle Slab Moulds are used in various construction projects. Key applications include:
- Residential Buildings: Ideal for small to medium apartments requiring short spans.
- Small Commercial Structures: Such as shops and offices with unidirectional loading.
- Educational Facilities: Used in constructing classrooms or small halls in schools and universities.
- Single-Story Parking: Cost-effective and lightweight, suitable for parking with limited spans.
For reliable scaffolding to support mould placement, visit system scaffolding solutions.
Advantages of Using One-Way Waffle Slab Moulds
One-Way Waffle Slab Moulds offer several benefits, making them a preferred choice in construction:
- Reduced Structural Weight: Voids reduce slab weight by 25 to 30 percent, lowering dead loads and improving earthquake resistance.
- Material Savings: Less concrete and rebar usage reduces project costs.
- Easy Installation: Simple design allows for quick and easy mould placement.
- Reusability: Moulds can be reused up to 50 times or more.
- Low Execution Costs: Fewer equipment needs and fast installation reduce labor costs.
- Aesthetic Appeal: The grid pattern is visually appealing for exposed ceilings.
Disadvantages of One-Way Waffle Slab Moulds
Despite their advantages, One-Way Waffle Slab Moulds have limitations:
- Limited Span Length: Unsuitable for spans over 8 meters, where two-way moulds are preferred.
- Need for Precision: Accurate mould placement and reinforcement require skilled labor.
- Initial Cost: High-quality moulds can be expensive initially, though cost-effective over time.
Comparing One-Way Waffle Slab Moulds with Other Slab Systems
Selecting the right slab system involves comparing One-Way Waffle Slab Moulds with alternatives:
- One-Way Waffle Slab vs. Bubble Deck:
- Weight: One-way waffle slabs are lighter.
- Cost: More economical due to mould reusability.
- Execution: Bubble deck requires greater precision.
- One-Way Waffle Slab vs. Beam and Block:
- Weight: Waffle slabs are lighter.
- Cost: Beam and block is cheaper initially, but waffle slabs are better for medium projects.
- Aesthetics: Waffle slabs are more modern.
- One-Way Waffle Slab vs. Cobiax:
- Weight: Both are lightweight, but one-way waffle is better for smaller spans.
- Cost: Waffle slabs are more cost-effective due to reusability.
Key Considerations for Purchasing or Renting One-Way Waffle Slab Moulds
When buying or renting One-Way Waffle Slab Moulds, consider:
- Mould Material: Plastic is lightweight and affordable; metal is more durable.
- Mould Dimensions: Common sizes are 60 by 60 or 80 by 80 centimeters, chosen based on project needs.
- Build Quality: Moulds must resist concrete pressure and environmental conditions.
- Price: In 2025, plastic one-way moulds cost between $10 and $25 per mould.
- Rent or Buy: Renting is ideal for short-term projects; buying suits multiple projects.
- Reputable Supplier: Choose trusted suppliers for quality and support.
For robust support during construction, explore prop jacks for construction.
How to Execute a Waffle Slab with One-Way Moulds
Executing a one-way waffle slab involves:
- Structural Design: Create drawings considering unidirectional loading and spans.
- Formwork Setup: Install scaffolding and supports for concrete weight.

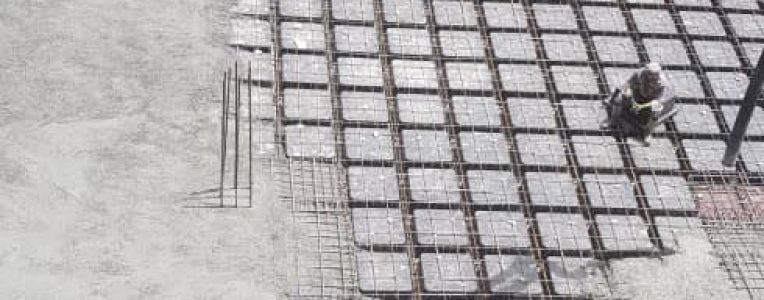

- Mould Placement: Position one-way moulds accurately in the correct direction and level them.
- Reinforcement: Place rebar in the main load direction per the design.
- Concrete Pouring: Pour concrete evenly over the moulds.
- Mould Removal: Remove moulds after curing (7 to 14 days) for reuse.
Sample Projects Using One-Way Waffle Slab Moulds
One-Way Waffle Slab Moulds have been used in various Iranian projects, including:
- Small Residential Buildings in Major Cities: For cost and speed benefits.
- Educational Structures: Such as small halls in schools.
- Local Parking Lots: Due to simple design and low cost.
Frequently Asked Questions About One-Way Waffle Slab Moulds
- What projects are suitable for One-Way Waffle Slab Moulds?
Projects with short spans and unidirectional loading, like small residential buildings. - Are one-way waffle slabs earthquake-resistant?
Yes, their reduced weight enhances earthquake resistance. - What is the rental cost for one-way moulds?
Typically $1 to $2.5 per mould per month in Iran. - What’s the main difference between one-way and two-way moulds?
One-way moulds are for unidirectional loading and smaller spans.
Conclusion: Are One-Way Waffle Slab Moulds Suitable for Your Project?
One-Way Waffle Slab Moulds provide an economical and efficient solution for constructing concrete slabs in small to medium projects. With benefits like reduced weight, cost savings, and fast execution, they are ideal for contractors and engineers. However, for larger spans or complex loading, two-way moulds may be necessary.
